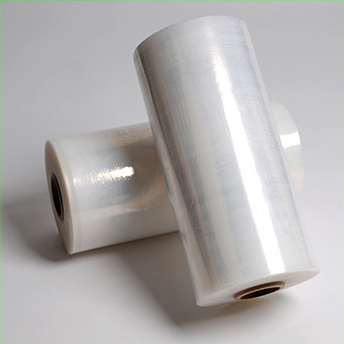

Name: PE Stretching Film with Food-Grade Compliance High Tensile Strength and UV Resistance for Industrial Packaging
Brand: GUANGDONG NEW ERA COMPOSITE MATERIAL CO., LTD.
SKU: Pe
Price: 1 USD
Availability: InStock

Startseite Produkte Nachhaltige Verpackungsfolie

PE Stretching Film with Food-Grade Compliance High Tensile Strength and UV Resistance for Industrial Packaging

Produktdetails:

Herkunftsort:	Guangdong China
Markenname:	NEI
Zertifizierung:	SGS, ISO
Modellnummer:	Pe

Zahlung und Versand AGB:

Min Bestellmenge:	1 Roll
Preis:	1 USD
Verpackung Informationen:	Verpackung aus Papierkarton oder Luftpolsterfolie
Lieferzeit:	5-20 Tage
Zahlungsbedingungen:	L/C, T/T
Versorgungsmaterial-Fähigkeit:	1000tons

Kontakt

Ausführliche Produkt-Beschreibung

Typ:	Gegossene/geblasene Stretchfolie	Farbe:	Transparent, Schwarz, Blau, Benutzerdefiniert
Beenden:	Glanz	Material:	Lineares Polyethylen niedriger Dichte (LLDPE)
Breite:	300 – 500 mm	Länge:	300 – 2000 Meter
Dicke:	12 – 35 Mikrometer	Papierkern:	1 Zoll oder 3 Zoll
Verpackung:	Einzelne Rolle	Herkunft:	CHINA
Recyclingabilität:	100% recycelbar	Anwendungen:	Palettenverpackung, Logistik, Lagerschutz, Industrieverpackung
Hervorheben:	Food-Grade Compliance PE Stretching Film , High Tensile Strength LLDPE Stretch Film , UV Resistance Industrial Stretch Wrap

PE Stretching Film: Technical Specifications & Performance Advantages for Industrial-Grade Packaging

As a critical auxiliary material in logistics packaging, our PE Stretching Film is engineered with high-density polyethylene (HDPE) and modified processing technology, delivering stable mechanical properties, excellent adaptability, and cost-efficiency.

Material & Core Technical Parameters

Base Material Composition

Resin Grade: Food-grade HDPE (LLDPE blend, melt flow rate 2.3g/10min @190℃/2.16kg), ensuring low-temperature toughness (-40℃ no brittle fracture) and high-temperature stability (continuous use ≤60℃).
Additive System: Contains 0.3% anti-blocking agent (silica-based) to prevent roll sticking during unwinding, and 0.2% slip agent (erucamide) to reduce friction coefficient (static friction coefficient ≤0.3) for smooth automated wrapping.
Thickness Control: 15μm–50μm (tolerance ±5%), with uniform thickness distribution (CV value ≤3%) via 3-layer co-extrusion technology, avoiding local thin spots that cause tearing.

Key Mechanical Performance Indicators

Performance Index	Test Standard	Our Product Value	Industry Average	Advantage Description
Maximum Stretch Ratio	ASTM D882	≥300%	200–250%	Reduces material consumption by 20–30%
Tensile Strength (MD/TD)	ASTM D882	18MPa / 15MPa	12MPa / 10MPa	Resists puncture from sharp box corners
Elongation at Break	ASTM D882	≥500%	400–450%	Absorbs impact during transit
Cling Force (Self-Cling)	ASTM D3354	0.8N/25mm	0.5–0.6N/25mm	Ensures load stability (no shifting)
UV Resistance (Optional)	ASTM G154	UV transmittance <5% (after 1000h irradiation)	>15%	Suitable for outdoor storage (6-month no degradation)

Processing & Application Adaptability

Compatibility with Wrapping Equipment

Automated Wrapping Machines: Matches 95% of industrial-grade pallet wrappers (e.g., Lantech, Orion), supporting wrapping speed up to 15 pallets/hour (diameter 1.2m, height 2.0m). The film's consistent unwinding tension (5–15N adjustable) avoids equipment jamming.
Manual Dispensers: Lightweight roll design (core diameter 76mm, roll weight 5kg–20kg) reduces operator fatigue; the film's tear resistance (tear propagation resistance ≥50N) allows manual cutting without auxiliary tools.

Scenario-Specific Technical Optimization

Food-Grade Application: Complies with FDA 21 CFR 177.1520 and EU Regulation (EC) No. 10/2011, free of plasticizers (phthalates) and heavy metals, suitable for wrapping fresh produce, baked goods, and bulk food (extending freshness by 3–5 days via moisture barrier).
Heavy-Duty Industrial Use: For machinery parts, building materials (e.g., steel bars), the 50μm thick variant offers puncture resistance ≥80N (ISO 6603-2), preventing film breakage from sharp metal edges during forklift handling.

Quality Control & Sustainability

Production Quality Assurance

Online Monitoring: Uses laser thickness gauges (accuracy ±1μm) and tensile testing machines (real-time sampling every 2 hours) to ensure batch consistency.
Environmental Adaptability Test: Passes 100-cycle temperature shock test (-40℃ to 60℃) and 500-hour humidity test (90% RH, 40℃) with no delamination, discoloration, or performance degradation.

Eco-Friendly Technical Features

Recyclability: Recyclable via PE-specific recycling processes (recycling code 4), with 85% material recovery rate.
Biodegradable Variant: Offers PBAT-blended PE film (biodegradation rate ≥90% in 180 days per ASTM D6340), suitable for brands with carbon neutrality goals.

Technical Support & Customization

Thickness Customization: 15μm (light-duty, e-commerce) to 50μm (heavy-duty, industrial).
Surface Treatment: Matte finish (anti-glare, for printed packaging) or glossy finish (enhanced moisture barrier).
Technical Documentation: Offers material safety data sheets (MSDS), performance test reports, and equipment matching guidelines to support customer quality audits.

For technical inquiries or sample testing, contact our engineering team—we ensure product performance aligns with your packaging process requirements.
